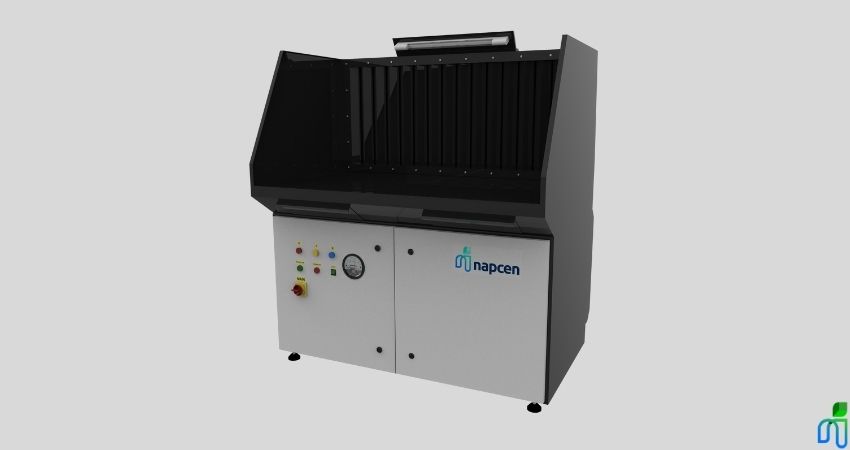

Industrial Downdraft Table

The industrial downdraft table is specifically designed for welding, cutting, and grinding small, easily manageable parts within the workspace. It provides a practical and efficient workstation for processing such pieces. Equipped with a comprehensive wind system above the workbench, it effectively prevents dust from spreading and being inhaled. The built-in fume extractor efficiently captures dust and fumes generated during grinding, significantly enhancing the workshop's cleanliness and air quality. This system ensures a safer, healthier environment for workers involved in welding, cutting, and grinding operations, promoting both productivity and compliance with workplace safety standards.

The Industrial Downdraft Table is an innovative dust collector that combines a workbench and dust extraction system, drawing on advanced domestic and international designs. Its unique desktop design features four-sided exhaust, a built-in dust removal system, and a sound-insulated fan, eliminating the need for pipeline connections. The cleaned air is recirculated indoors, significantly reducing energy consumption.

Equipped with a low-noise fan, the table ensures consistent suction volume with minimal noise, promoting users’ physical and mental well-being. The imported membrane filter cartridge achieves a purification efficiency of 99.9%, protecting workers' health and extending the filter's lifespan up to 24 months.

The table’s ergonomic design supports efficient polishing while saving space, offering a compact structure suitable for duplex or multi-station operation. Based on the nature of the dust generated, Napcen selects the appropriate filter media to ensure effective dust management for various applications.

Selection Criteria

Downdraft table Application

Welding, Grinding, Sanding etc...

Type of Dust / Concentration

Abrasive/ Sticky/ Explosive, Concentration in ppm or kg/hr

Duty cycle

The operation will be 24 x 7 or 8 hrs shift

Required Working Area

Mension the process area (LXWH)

Technical Details

  • Air Handling Volume – 600 to 1500 CFM
  • Overall sizes(HxLxW)mm-1250x1000x1500
  • Working height – 900 MM
  • Fan Power – 3 HP
  • Motor Speed – 2880 rpm
  • Power supply – 3 Phase/ 50 HZ
  • Filter Cleaning – Pulse Jet / Automatic
  • Noise Level - 75 dBa
  • Efficiency – 99.9%
  • Applications

  • Odour control
  • Plasma cutting
  • Grinding
  • Solvent and Epoxy Fumes
  • Welding
  • Powder Containment
  • Parts Cleaning
  • Utility table
  • Grinding (Light)
